OPTIBAR DSD 3220

Diaphragm seal with flange design and optional extension

  • 2 x capillary tube attachment to OPTIBAR DP 7060 differential pressure transmitter
  • Flange: DN50…100 / 2…4"; max. PN63 / ASME Cl 300
  • Up to +400°C / +752°F
  • Wetted materials for aggressive, corrosive, viscous, solidifying or abrasive media

OPTIBAR DSD 3220

OPTIBAR DSD 3220 Diaphragm seal

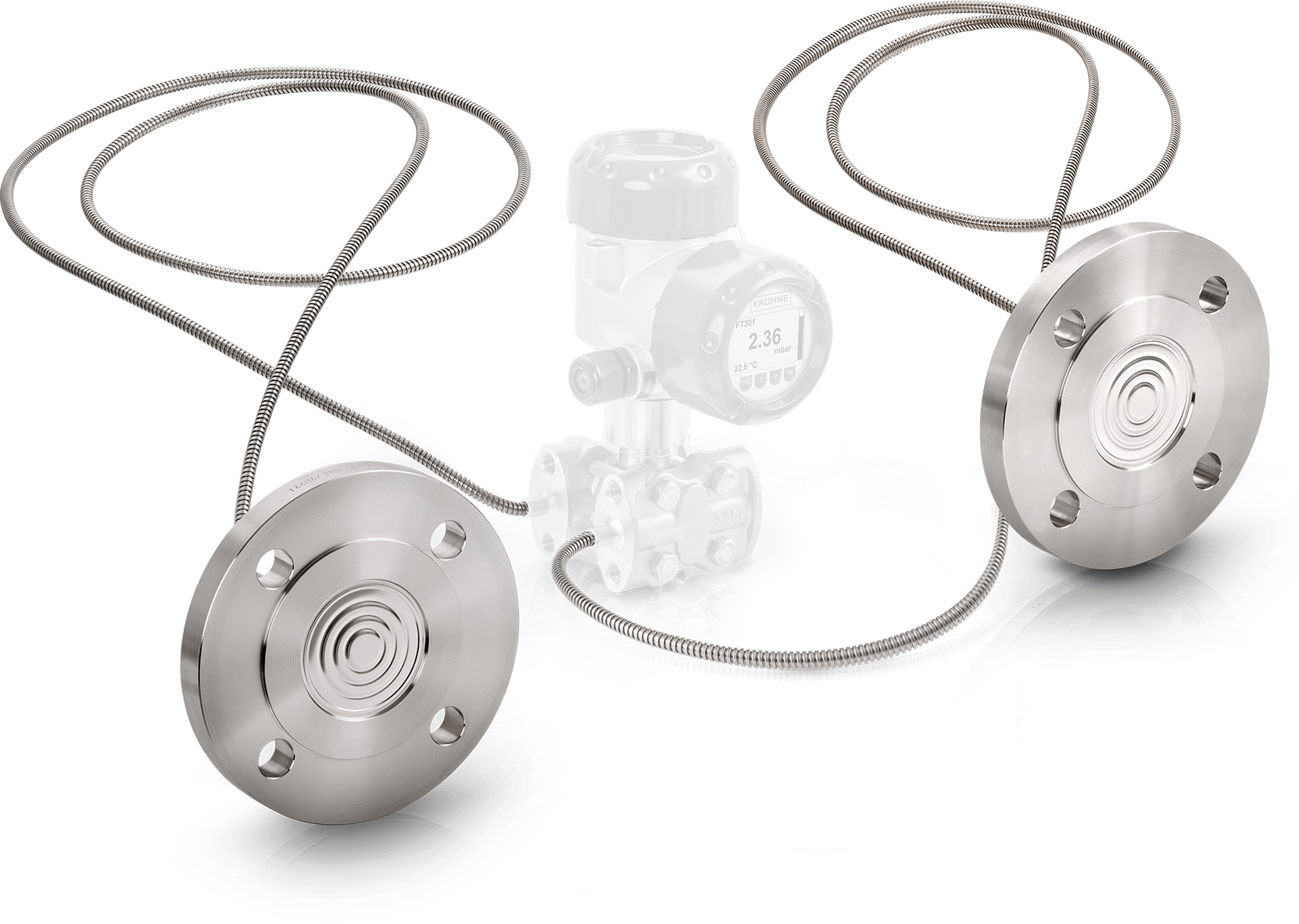

The OPTIBAR  DSP 3220 is a two-sided diaphragm seal for mounting to the OPTIBAR  DP 7060 differential pressure transmitter. It features a flange design with optional extension for 2 x capillary tube attachment. The diaphragm seal comes with a wide selection of wetted materials from stainless steel to chemically resistant PTFE or PFA coatings, Hastelloy®, Duplex, titanium, tantalum and gold. This makes it ideal for absolute or gauge pressure measurement and hydrostatic level applications where it is required to direct contact between measuring cell of the transmitter and the medium.

Typical applications

Differential pressure measurement or hydrostatic level applications involving:

  • Very aggressive acids
  • Corrosive and reducing atmospheres
  • Viscous and clogging media
  • Abrasive fluids
  • High temperature processes up to +400°C / +752°F

Related products

OPTIBAR DP 7060
with diaphragm seal

Differential pressure transmitter for advanced applications and high temperatures

  • Continuous measurement of differential pressure, level, density and interface
  • Different diaphragm seals for corrosive, viscous or reducing media and vibration
  • Thread: ¼ NPT; Flange: DN50…100 / 2…4"
  • Measuring range: max. 16 psig / 232 psig; max. +400°C / +752°F
